Understanding Adversarial Transferability in Vision-Language Models for Autonomous Driving: A Cross-Architecture Analysis

Apr 7, 2026· David FernandezDavid Fernandez ,Pedram MohajerAnsari ,Amir Salarpour ,Mert D. Pese
PDF DOI Cite

Key Contributions & Takeaways

  • Adversarial patches transfer across VLM architectures with 73–91% success rate; attackers need no knowledge of the deployed model to mount effective attacks.
  • Introduces a Transfer Matrix framework revealing that CLIP-based vision encoders (Dolphins, LeapVAD) drive stronger bidirectional transferability than EVA-CLIP (OmniDrive).
  • Attacks persist across 64–79% of frames throughout the critical decision window, too sustained for temporal filtering or ensemble defenses to reliably mitigate.
publications

01  ·  The Problem

Physical adversarial patches on road signs can manipulate VLM driving decisions. Attackers typically don't know which model a vehicle uses, yet that may not matter.

02  ·  The Method

Three VLMs (Dolphins, OmniDrive, LeapVAD) are evaluated with physically realizable patches in Crosswalk and Highway scenarios using Black-Box NES optimization.

03  ·  The Finding: Transferability

Patches optimised for one model remain 73–91% effective on others. Architectural diversity alone provides limited real-world protection.

Threat Model
Black-box attacker uses only physical patches on legitimate roadside infrastructure: no model internals, no gradients, no target knowledge required.
No patch · Drives safely
Clean road scene, no adversarial patch on billboard
With patch · Manipulated
Road scene with adversarial patch on billboard
Methodology
Five-stage pipeline: black-box patch optimization → physical deployment → VLM inference → semantic homogenization → transfer evaluation
01
Patch
Generation
02
CARLA
Deployment
03
VLM
Inference
04
CLIP
Homogenization
05
Transfer
Evaluation
Phase 01  ·  Patch Generation
No gradients: NES converges in 6 000 queries

Patches are optimised via Natural Evolution Strategies using a CLIP-based semantic similarity loss over the VLM output command, with no access to model weights or gradients. Expectation over Transformation (EoT) bakes in physical robustness across viewing angles and lighting conditions.

// Semantic adversarial loss (CLIP text embedding space)
L(δ)  =  1 − cos( ET(f(x ⊕ Mδ)) ,  ET(f(x)) )
// NES gradient estimate & patch update
gk  =  (nσ)−1 ⋅ Σi εi ⋅ L(δk + σεi)
δk+1  =  clip( δk + α⋅gk ,  [0,1])
Zero gradient access 6 000 queries / model EoT physical robustness CARLA simulation
CARLArenders patchin simulationVLMinference onpatched sceneCLIP Losssemantic driftcos similarity ↓NES Updateevolve patch δgradient-free6 000queries / modelAdversarial Patch δ*physicallydeployableon billboard
Adversarial patch δ*  →  deployed on simulated billboard
Phase 02  ·  CARLA Deployment
Patch rendered on a simulated billboard; VLM vehicles drive past it

The optimised patch δ* is placed on a roadside billboard inside the CARLA simulator. Ego-vehicles equipped with the target VLMs drive toward it under varied lighting and camera angles, producing the inference inputs for Phase 03.

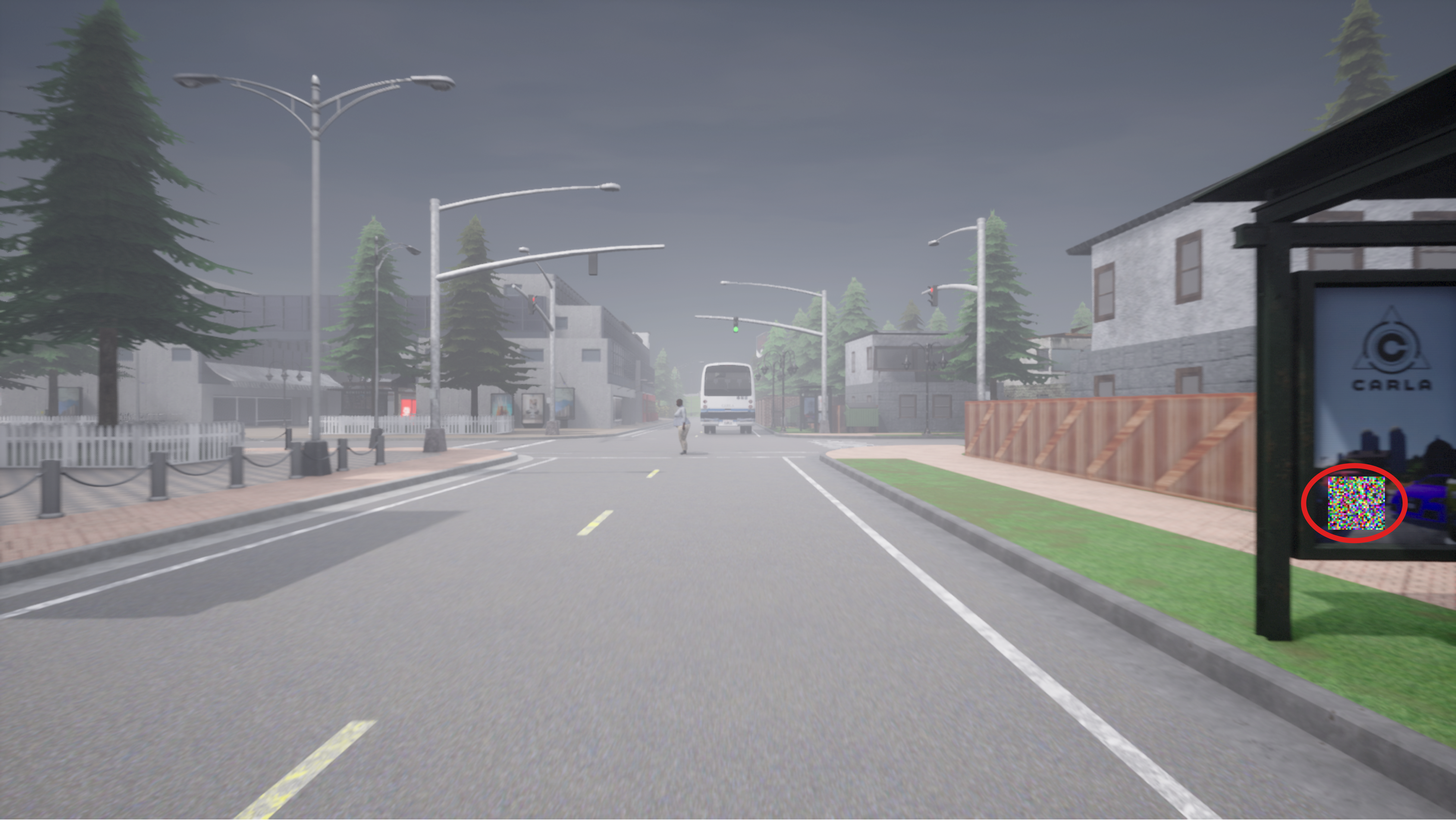

S1: Bus stop crosswalk scenario
S1 · Crosswalk: Bus Stop
Patch on shelter billboard at pedestrian crossing

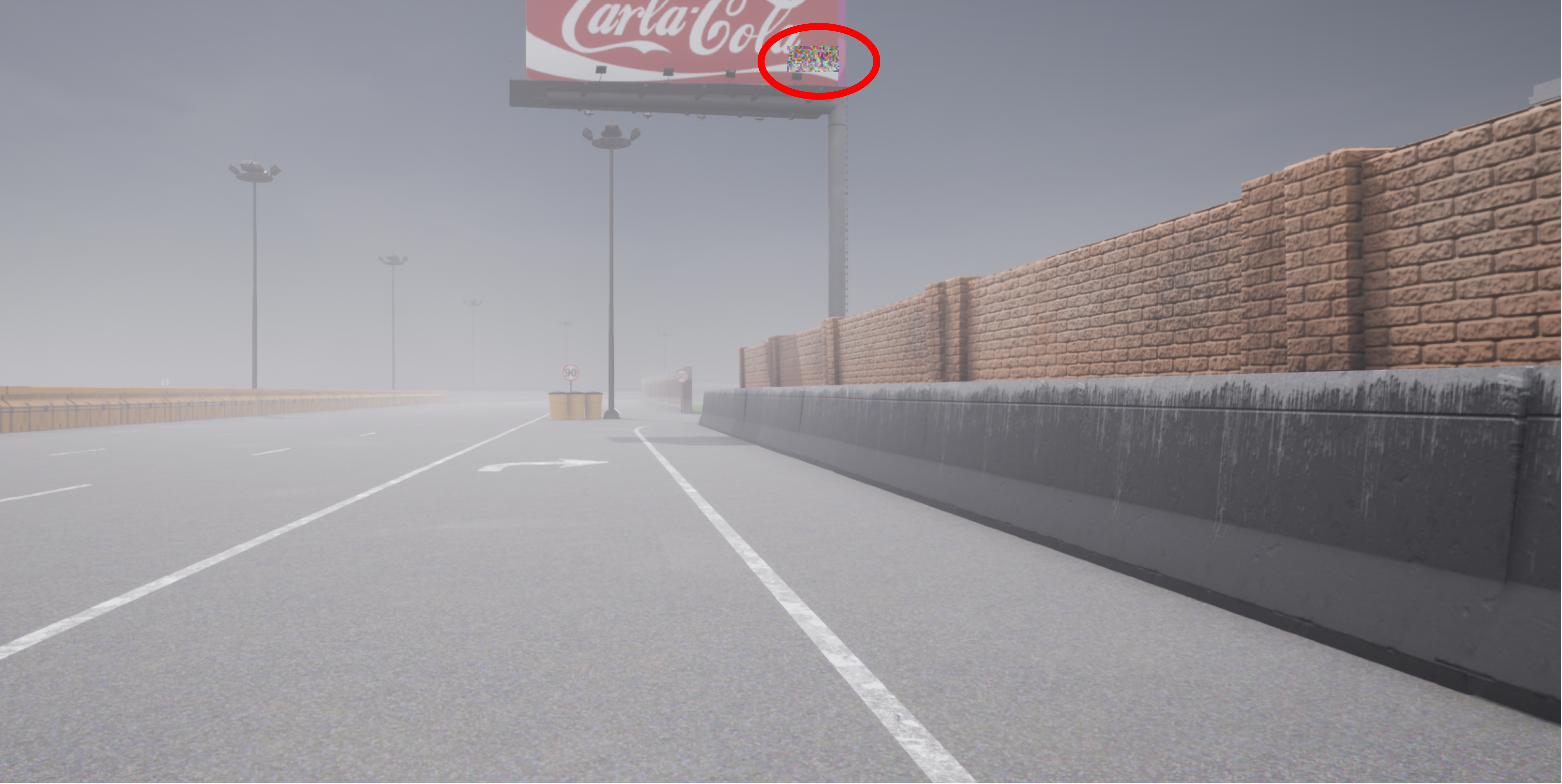

S2: Highway billboard scenario
S2 · Highway: Billboard
Patch on roadside billboard at highway speed
Patched driving frames  →  fed to all three VLM architectures
Phase 03  ·  VLM Inference
Three architectures receive the patched scene and produce driving decisions
❄ frozen 🔥 trained / fine-tuned patch entry point
Dolphins
OpenFlamingo-based · video VLM
CLIP shared
T video framespatched scene δ*CLIP ViT-L/14❄InfoNCE contrastive×24 layers · 1024-dshared CLIP attack surfacePerceiverResampler🔥compresses visual tokensKV · visual featuresMPT-7B❄6.7B params · frozen decoder · GCoTLM self-attention block ❄gated cross-attention 🔥LM self-attention block ❄gated cross-attention 🔥×N⋮Q: language tokens · KV: visual featuresdriving instruction promptdriving decisionGrounded CoT output
(a) Dolphins. Frozen CLIP ViT-L/14 features are compressed by a trained Perceiver Resampler and injected into the frozen MPT-7B decoder through interleaved gated cross-attention layers. The adversarial patch couples directly into the shared CLIP manifold.
OmniDrive
Omni-L & Omni-Q variants · multi-view 3D
Distinct encoder
N surround-view camspatched billboardEVA-02-LMIM-distilled CLIPmulti-view N×C×H×WMIM manifold · partially distincttwo connector variantsOMNI-LMLP projectorlinear · LLaVA-styleOMNI-QQ-Former3Dcarrier + perception queriescarrier qperception q3D position encodingLLaMA2-7Bcausal decoder · 4096-dvision-language alignmentlanguage outputplanning · QA3D detectionperception outputs
(b) OmniDrive. Multi-view features from the MIM-distilled EVA-02-L encoder reach LLaMA2-7B through either a linear MLP projector (Omni-L) or a Q-Former3D with carrier and perception queries (Omni-Q). Its partially distinct feature manifold weakens incoming CLIP-optimised patches (TR 0.42–0.57).
LeapVAD
dual-process · cognitive driving
CLIP shared
multi-view · multi-framepatched scene δ*Qwen-VL-7B🔥CLIP-based ViT · scene VLMfine-tuned · 7.1K CARLA scenesCLIP manifold · shared attack surfacescene description“pedestrian crossing ahead,wet road, slow down”Scene Encodercontrastive scene token · 256-dACT 128ACC 128storeMemory Bankexperience storetop-k cosine retrievalreasoning inputSYSTEM-II · ANALYTICGPT-4oanalytical reasoning · reflectionslow · deliberateexperience distillationSYSTEM-I · HEURISTICQwen1.5-1.8Bdistilled from System-II5× faster inferencecontrol signaldriving decision
(c) LeapVAD. A dual-process system: the fine-tuned Qwen-VL-7B scene VLM feeds an analytic GPT-4o reasoner (System-II) whose experience is distilled into a fast 1.8B heuristic driver (System-I), supported by top-k retrieval over 256-d contrastive scene tokens. Vision is grounded in the same CLIP manifold as Dolphins (TR 0.82–0.91).
Heterogeneous VLM outputs  →  shared CLIP text embedding space
★ Novel
Phase 04  ·  CLIP Homogenization
Architecture-agnostic evaluation via shared embedding space

VLMs generate heterogeneous outputs across different vocabularies and instruction formats. The key methodological contribution is projecting all outputs through a shared CLIP text embedding space, enabling direct cross-architecture semantic comparison. CLIP-family vision encoders create a shared visual attack surface, explaining the high bidirectional transfer between Dolphins and LeapVAD (0.82–0.91).

DIVERSE OUTPUTSPROJECTIONSHARED SEMANTIC SPACEDolphins"Turn left at crossroad"natural language (GCoT)OmniDrive"Ped@0.4m · brake·2.3m"3D bbox + structured cmdLeapVAD"decel 2.5 m/s² · 8 tokens"control signals + memoryCLIP TextEncodershared ℝ⁵¹² spaceCLIP-familyDolphinsLeapVAD0.82–0.91OmniDriveEVA-02-L0.42–0.57(partial)cosine similarity comparison
Why shared encoders create a shared attack surface
Dolphins (OpenFlamingo, Perceiver Resampler + cross-attention) and LeapVAD (Qwen-VL-7B) both ground vision in a CLIP-aligned InfoNCE contrastive manifold; patches that maximise cosine drift in this space transfer directly between them (0.82–0.91). OmniDrive’s EVA-02-L uses masked image reconstruction (MIM) that distills CLIP, producing a partially distinct feature manifold; its Q-Former connector (Omni-Q variant) further decouples spatial features during language alignment, routing adversarial signal through a different pathway, explaining the lower but still substantial cross-cluster transfer.
TRij
Transfer
rate
TSi
Outgoing
generalisation
Frame
ASR
Temporal
persistence
VSj
Incoming
susceptibility
CLIP embedding similarities  →  transfer matrix
Phase 05  ·  Transfer Evaluation
Two driving scenarios, each tested with patches from all three VLM architectures. Transfer rates show how well attacks generalise across unseen models.
Architecture Vulnerability Ranking
Dolphins: most vulnerable to incoming attacks  ·  LeapVAD: most transferable patches  ·  CLIP encoder drives strongest bidirectional transfer
MetricDolphinsOmniDriveLeapVADInterpretation
Self-Attack ASR76.0%84.4%71.7%OmniDrive hardest to fool from outside, but optimised attacks on it succeed best
Vulnerability Score0.820.8100.814Dolphins most affected by patches from other architectures
Transfer-Out Rate0.7920.7720.882LeapVAD patches generalise best across unseen architectures
Universal Patch ASR64.3%69.8%63.5%A single patch fools all three; OmniDrive most susceptible
CLIP Enc. ASR
encoder-pathway
79.2%81.5%76.8%Attack success rate routed through the shared CLIP encoder pathway; confirms encoder is the primary vulnerability driver
Implications
Security

Architectural diversity is not a sufficient defense. Patches optimised for one model remain 73–91% effective on others; an attacker with physical access to a roadside billboard needs no knowledge of which model the target vehicle runs.

Design

Shared CLIP encoders create a shared attack surface. Deploying models with distinct vision encoder families (CLIP vs. non-CLIP) would structurally limit transferability; EVA-02-L’s MIM training already reduces but does not eliminate cross-cluster transfer.

Defence

Temporal filtering and ensemble voting are insufficient. Attacks persist across 64–79% of frames in the critical decision window, long enough to corrupt decisions before any frame-level filter or multi-model vote can compensate.

Transfer rates evaluated via TRij = ASRij / ASRii, normalising cross-architecture success against same-model baseline. Diagonal entries (self-attacks) shown in gray. All experiments conducted in CARLA simulator with physically realizable patches. Scenarios: Crosswalk/Bus Stop and Highway/Billboard.

Abstract

“Adversarial patches transfer across VLM architectures at 73–91% success — an attacker needs no knowledge of which model the target vehicle runs.”

Vision-language models (VLMs) are increasingly used in autonomous driving because they combine visual perception with language-based reasoning, supporting more interpretable decision-making, yet their robustness to physical adversarial attacks, especially whether such attacks transfer across different VLM architectures, is not well understood and poses a practical risk when attackers do not know which model a vehicle uses. We address this gap with a systematic cross-architecture study of adversarial transferability in VLM-based driving, evaluating three representative architectures (Dolphins, OmniDrive, and LeapVAD) using physically realizable patches placed on roadside infrastructure in both crosswalk and highway scenarios. Our transfer-matrix evaluation shows high cross-architecture effectiveness, with transfer rates of 73-91% (mean TR = 0.815 for crosswalk and 0.833 for highway) and sustained frame-level manipulation over 64.7-79.4% of the critical decision window even when patches are not optimized for the target model.
Type Conference paper
Venue SAE Technical Paper 2026-01-0170, WCX SAE World Congress Experience
Adversarial Attacks Vision Language Models Autonomous Vehicles AI Security
